OPTI6800SDE - 6500 Watt Silent Diesel Generator
OPTI 6500W Silent Diesel Generator
$1,799.00

Preview User's Manual

Electric Start, Remote Start & Optional Remote Glow Plug

Great Quality & Excellent Service You can trust!

Our latest model OPTI6800SDE 6500 watt Silent Diesel Generator has much improvement, e.g.,using glass fiber cover for wiring, removing capacitor from alternator for better ventilation & easy maintenance and using a metal sheet for protecting wiring and harness from overheating. Our on-site testing shows that the temperature rise in muffler side cover was only 50~60 degree C after the generator ran 5 hours. The generator will labor ideally and better than you have ever expected! We are the only maker and supplier of this improved model for sale in North America Market. 110V~240V for both 60HZ and 50 HZ version available. If interested in 50 Hz unit, please contact us for detailed information.

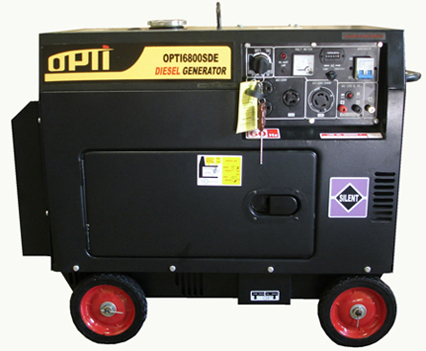

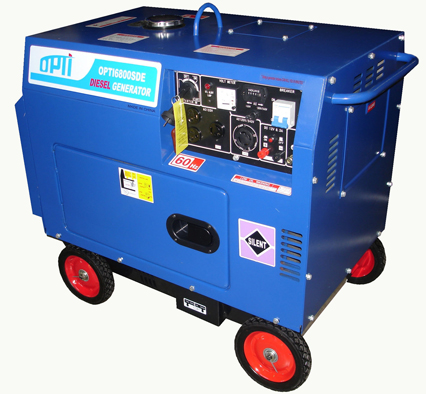

Big 7.0" Solid Wheels Make Your Dream Come True of Easy Moving either on Construction Site or on Gravel Road in Rural Areas(Yellow and Red Color also Available Not Shown Here).
Easy Access to Externally Installed Capacitor for Convenient Maintenance.
Thermoresistant Material Supporting Net
Wiring & Harness Protection Metal Sheet
Expensive Glass Fiber Cover Used for Better Protection

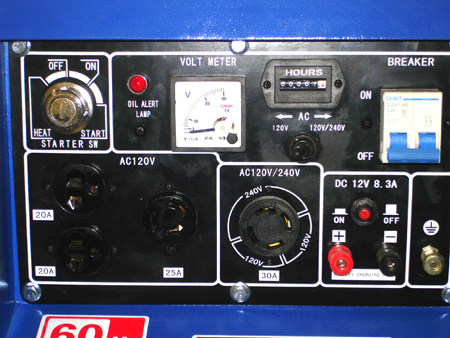

Control Panel (Turn key switch counterclockwise to HEAT position to warm up cold air, also see glow plug below for more information.)

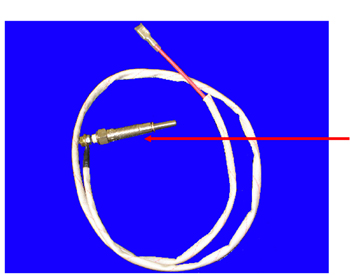

Glow Plug(Preheater) Helps You Out of Frigidity in Winter.

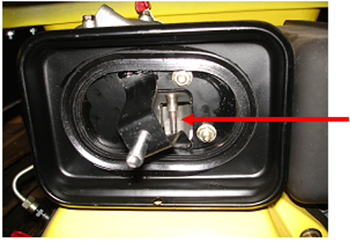

Genuine Glow Plug Installed in the Air Intake Passage, Safe & Powerful! No Cheap & Dangerous Electric Resistance Wire Used.

Glow Plug Glows in Darkness.

Remote Control Unit (Duplicate RF Keys Available with Extra Charge)

NEWLY DEVELOPED FEATURE: Remote Glow Plug.

Two sets of ON and OFF buttons used for remote starting engine and turning on glow plug respectively, Set 1 for starting engine and Set 2 for controlling glow plug, Sets 1& 2 are interlocked each other and only one set of ON & OFF works at a time, Set 2 is programmed for preheating glow plug 25 Sec and glow plug will automatically power off after 25 Sec, you can also DEPRESS OFF button in SET 2 for power off earlier. This new featured remote starter costs an extra $75.00.

If you do not want to manually turn the key or press glow plug button for preheating cold air in winter season while keeping you warm indoors, please consider adding this new optional feature.

Specifications

Generator:
Generator Type Brushless or Brush, 2-pole, single phase
Voltage regulator Capacitor or AVR
Max Output 6500 watt
Rated Output 5500 watt
Rated Amps 46A@120V,23A@240V,8.3A@12V
Engine (KSD186FAGE):
Engine Type 4-Stroke, air-cooled, single cylinder, OHV
Displacement 418cc
Max Output 11HP/3600rpm/60Hz
Fuel Diesel
Fuel Tank Capacity 3.9 Gal
Continuous Operation Hours 12
Ignition System Direct Fuel Injection
Starting System Electric Start/Wireless Start with Glow Plug(Optional Remote glow plug)
Operation Noise Level(7m) 72dB(A)
Compression ratio 19:1
Lube SAE15W40 or 5W40 SYNTHETIC DIESEL ENGINE OIL
Electric Outlets:
NEMA Rating

2 x NEMA 5-20R for 120V @ 20A, 1 x NEMA L5-30R for 120A@ 30A, 1 x NEMA L14-30R for 120/240V @ 30A and 1 x DC12V @ 8.3A

Weight:
Net weight (lb) 352
Dimensions:
Product Dimensions (inches) 36.2 x 20.9 x 27.8
Carton Dimensions (inches) 37.2 x 21.5 x 29.0
 Standard Features
  • Electric start and remote start (range of operation >30M) with manual glow plug(preheater)
  • Large fuel tank with 12 hours continuous operating capability
  • Soundproofing - 72dB at 7 meters
  • Front and side lockable door
  • Design for easy maintenance
  • Automatic Voltage Regulator
  • Automatic shutdown for low oil pressure
  • Vibration isolation mounting between engine/alternator feet & base frame
  • Reduced vibration and improved durability
  • Non-fused breaker protection for AC
  • Overload protection and convenience
  • AC Voltmeter,120V/240V switch
  • DC 12V charging system(car/boat batteries)
  • Low fuel indicator, oil alert
  • Ground fault interrupter
  • Dependable, Maintenance Free Alternator
  • Advanced direct fuel injection system
  • Provides low fuel consumption
  • All American standard receptacles
  • Includes battery and hour meter
